Goodyear Air Spring - 1R12-069 Goodyear

Goodyear Air Spring - 1R12-069

Vendor: Goodyear

Inventory: 4 in stock

Regular price $241.92 $147.53

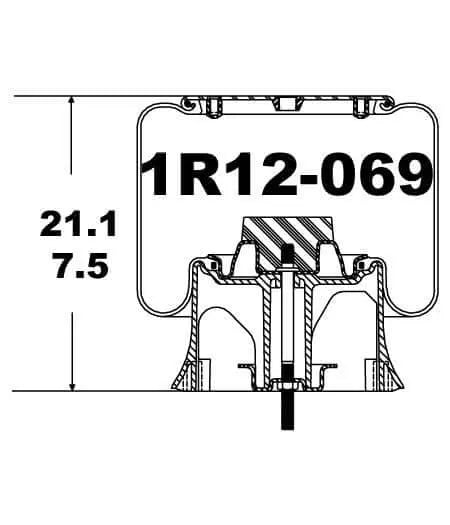

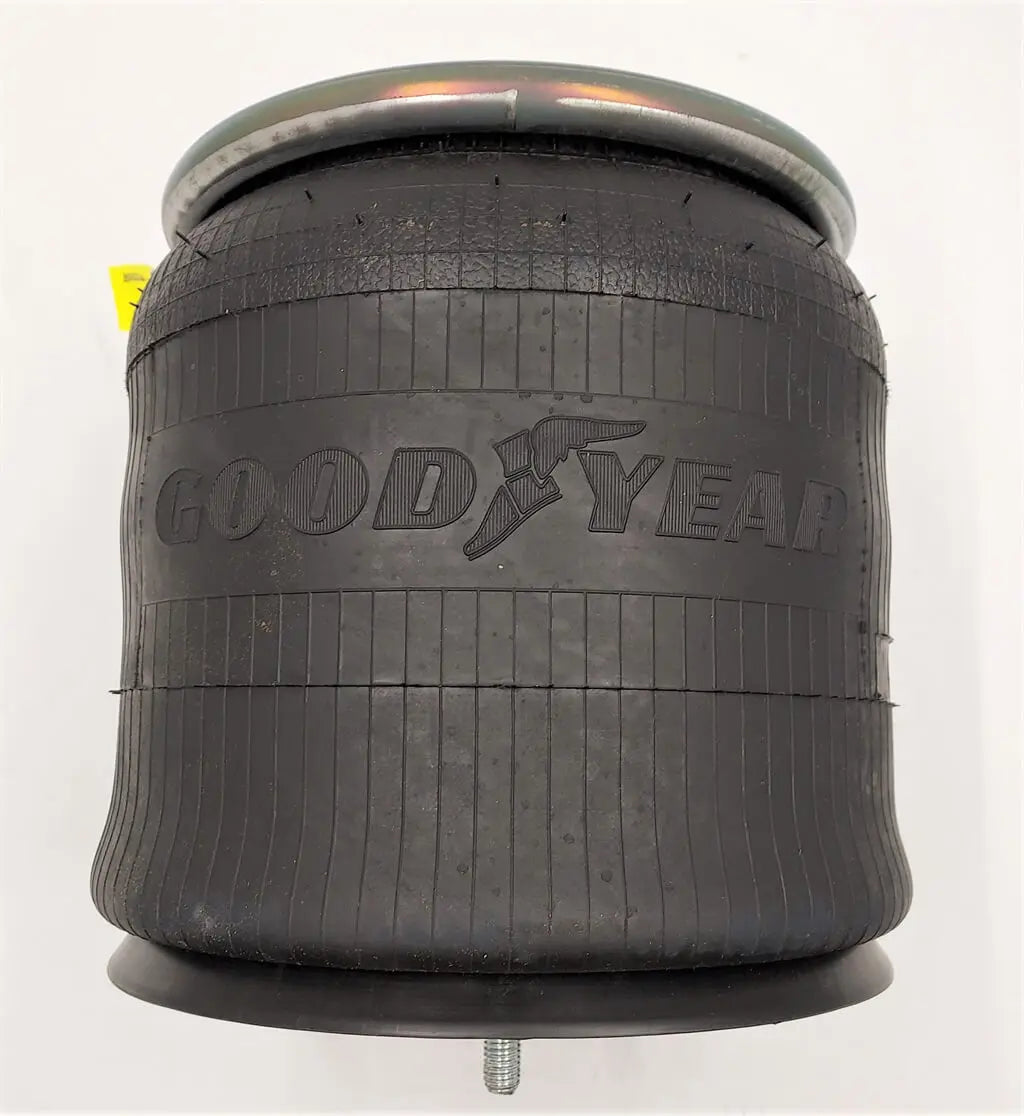

Goodyear Super-Cushion Rolling Lobe Air Spring 1R12-069

Bellows: 566-24-3-038 "Not the Part Number. Only the Bag Number"

Air Fitting: 1/2" NPT

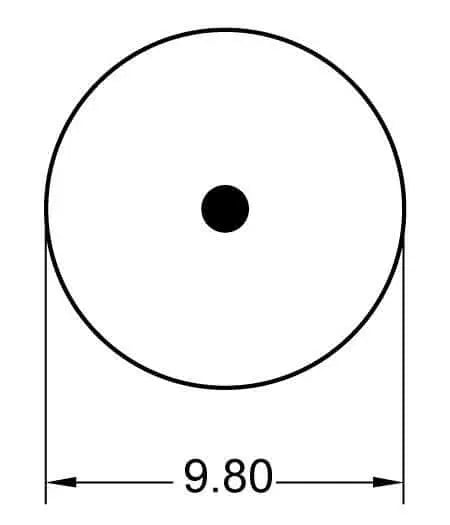

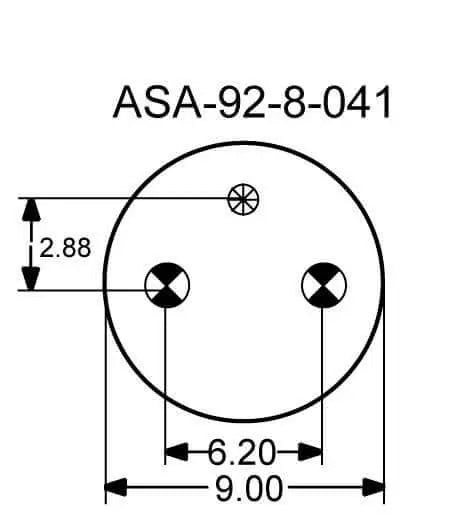

End Plate Dia: Top - 9.00"   Bottom - 9.80"

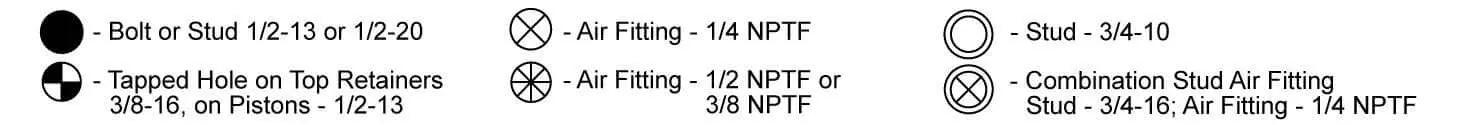

Mounting Holes: (2) Top - 3/8"-16   (1) Bottom - 1/2"
Mtg. Hole Spacing: Top - 6.20"   Bottom - Center
Bumper: Yes

Also Replaces:

CONTI:
64274
910-14P 312
DAYTON:
352-9069
FIRESTONE:
W013589069
FLEETRITE:
1R12-1052
INT'L/NAVISTAR:
554764C1
LOAD GUARD:
SC2034
PETERBILT:
03-01649
03-02456
03-04759
03-07112
23-10042
SPRINGRIDE:
1R12-1069
TAURUS:
AS504-9069
AS506-9069
TRIANGLE:
8312
TRP:
AS90690
WATSON & CHALIN:
AS-0077

Allow 1-3 Weeks for delivery when Zero Stock.

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
M
Michael Logan (Waxhaw, US)
Measurements

Need to put the measurements of the top mounting bracket to assure it fits. The numbers on the website and air bag are not enough

Hello. We regret that you had a poor experience when purchasing this product.
We have since added a short note to the description, noting that the Bellows number on the side of the Rubber Bag is for the Rubber Bellows only.
We always recommend that you look at the included pictures, part drawings, and specifications when choosing a product to purchase.
