Barksdale Height Control Valve - KD2360
Vendor: Barksdale
Part #: K866013

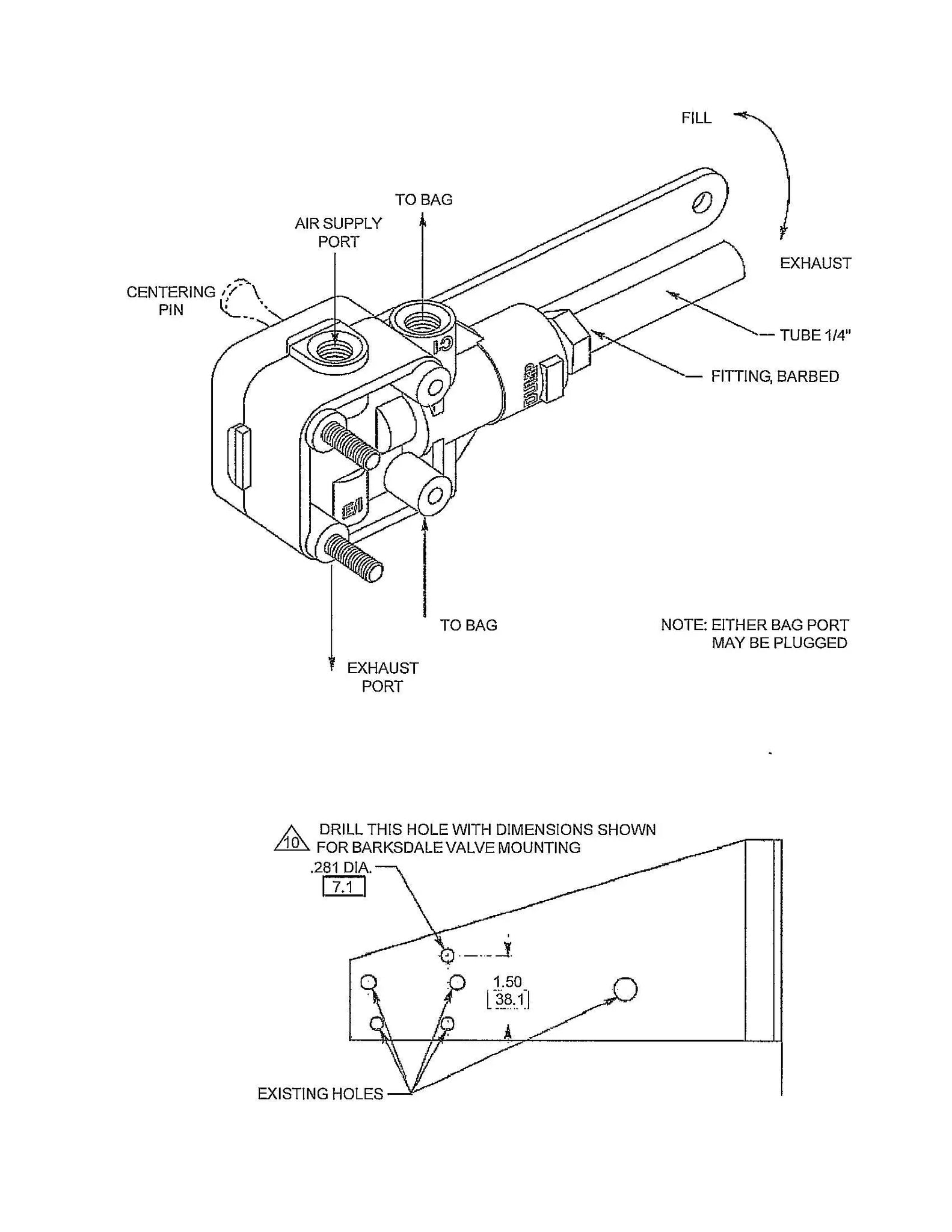

Barksdale P/N KD2360 Height Control Valve with Integral N/O Dump Valve (apply pressure to dump).
Velvac 034124

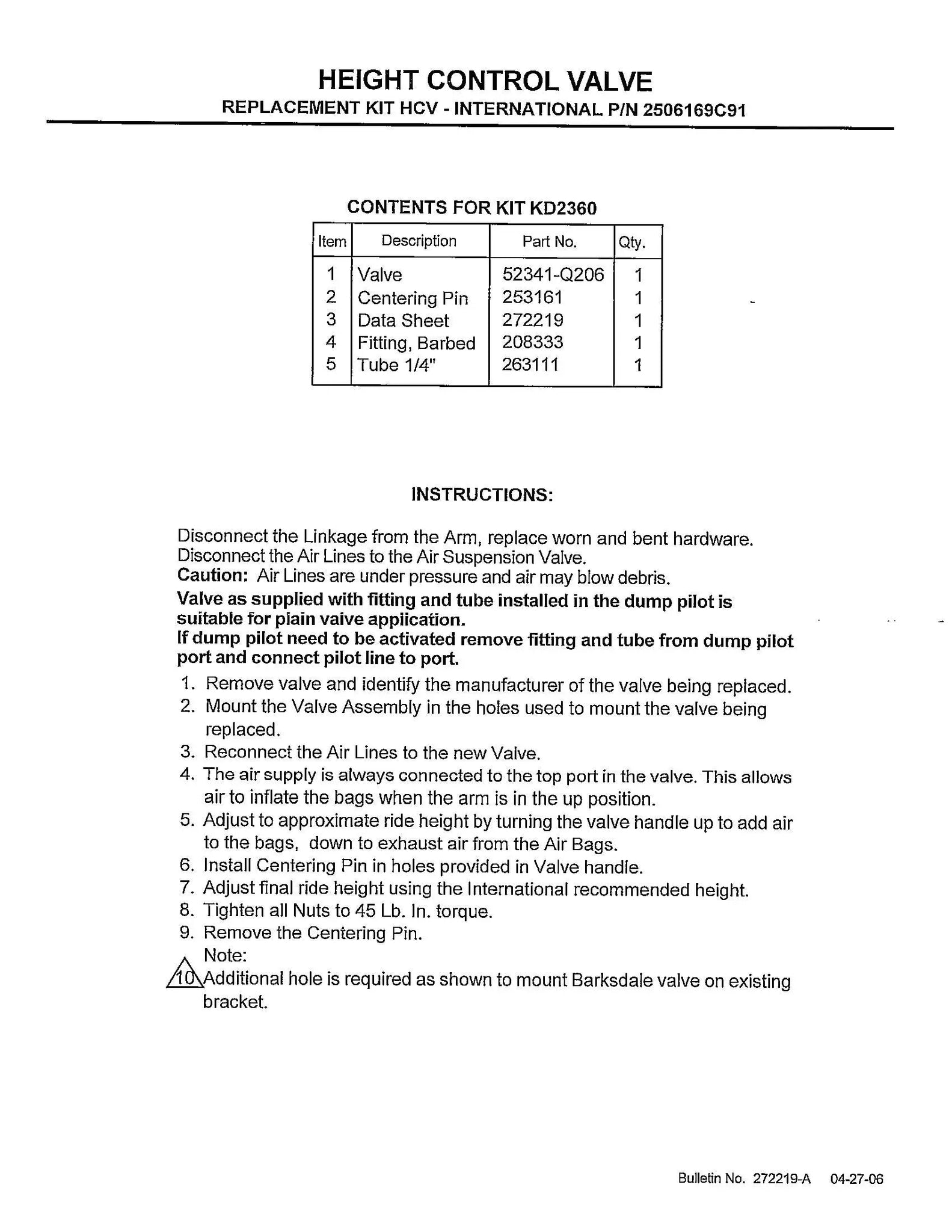

Includes: Centering Pin, Mounting Bracket and Exhaust fitting Tube
Supply Port: (1) 1/4" NPT
Suspension Port: (2) 1/4" NPT
Delay: None
Dump: None or N/O (Requires Air Pressure to activate Dump)
Dump Pilot Port: 1/4" NPT
Lever Arm: 7"
Also Replaces: Hadley H00500NS, International/Navistar 2506169C91 (Note: Drilling may be required), KD2488
Used On: International/Navistar and Peterbilt Chassis
