Ridewell 7423
Ridewell Suspension stopped manufacturing the Model 7423 Height & Leveling Control Valve around 2006. This Valve described as Mega-Duty was used on Trucks/Tractors, Trailers, Buses, Motor Homes, Air Cabs and Air Seats.
The Valve was available in many configurations and under numerous Part Numbers. It also came in an Air Dump Valve version, where a Dump Valve was mounted to the top of the Height Control Valve.
This Valve is recognizable with a black plastic body and distinctive blue exhaust cap on the bottom and the Ridewell name and numbers 7423 molded into the top of the valve near the air supply port.
Depending on your particular application there are several good replacements that we can recommend for you below. Please note that with any replacement some changes may be required during installation.
If you would like more information, PLEASE CALL US to discuss your particular needs.
K861001
If air consumption is not a concern and you have 3/8" air lines this is a good economical option. It comes with 3/8" PTC fittings and may require re-routing the air lines.
K861002
If you are replacing a "7423 with a Pressure Dump" this is a good choice. It comes with 3/8" PTC fittings and may require re-routing the air lines.
K861003
A good choice for Buses and RVs or other applications where air consumption may be a concern. This is a Low Flow Valve and uses 1/4" Tube PTC fittings and may require re-routing the air lines.
K861007
If you have a "7423 with a Zero Pressure Dump" such as a Trailer that uses automatic dump then this is a good choice. It comes with 3/8" PTC fittings and may require re-routing the air lines.
K864006
This may be the easiest replacement to install as it is very similar to the 7423 though overall it is a little larger than the original Valve, but has the same porting and mounting configuration. It comes with 1/4" NPT Fittings and the 1/4" round rod Lever Arm similar to the 7423. This Kit also includes an Adjustable Vertical Linkage Kit.
-
Haldex Height Control Valve - KN27000
Part #: K864006
$497.00$236.002 reviewsHaldex Height Control Valve - KN27000
Haldex Height Control Valve - KN27000
Haldex KN27000 EGP Height Control Valve with Lever Arm and Linkage KitView product
Haldex Height Control Valve - 90555105
Part #: K864005
$296.00$221.00Haldex Height Control Valve - 90555105
Haldex Height Control Valve - 90555105
Haldex P/N 90555105 EGP Height Control Valve Includes: Valve only/No Lever...King of the Road Height Control Valve - K870005
Part #: K870005
$125.00

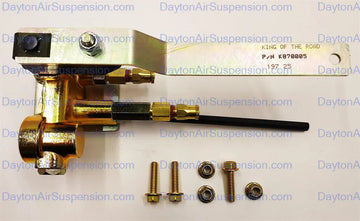

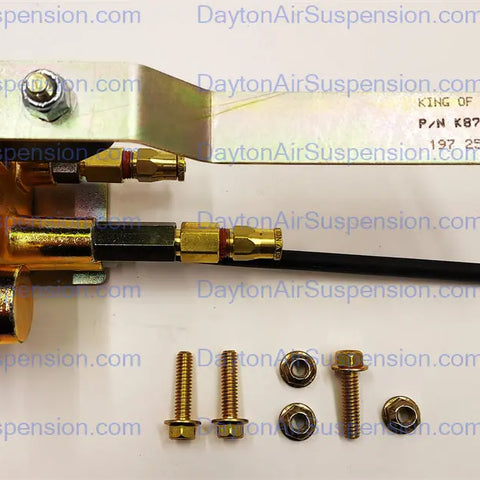

King of the Road Height Control Valve - K870005
King of the Road Height Control Valve - K870005
King of the Road P/N K870005 Height Control Valve - Right Hand mount. Designed as a replacement for the Ridewell model 7423 HC...King of the Road Height Control Valve - K870006
Part #: K870006
$125.00$122.001 reviewKing of the Road Height Control Valve - K870006
King of the Road Height Control Valve - K870006
King of the Road P/N K870006 Height Control Valve - Left Hand mount. Designed as a replacement for the Ridewell model 7423 HCV...Ridewell Height Control Valve - 6310BFAB13
Part #: K861002
$242.00$126.001 reviewRidewell Height Control Valve - 6310BFAB13
Ridewell Height Control Valve - 6310BFAB13
Ridewell P/N 6310BFAB13 Extreme Air Universal Height Control Valve with Pressure (N/O) Dump and 14" Adjustable Linkage Kit.Ridewell Height Control Valve - 6330BFAB15
Part #: K861003
$227.00$118.002 reviewsRidewell Height Control Valve - 6330BFAB15
Ridewell Height Control Valve - 6330BFAB15
Ridewell 6330BFAB15 Extreme Air Universal Low Flow Height Control Valve with 14" Adjustable Linkage KitHaldex Height Control Valve with Dump - 90555106
Part #: K864014
$408.00$295.00No reviewsHaldex Height Control Valve with Dump - 90555106
Haldex Height Control Valve with Dump - 90555106
Haldex P/N 90555106 EGP Height Control Valve with N/O Dump (apply pressure to dump). Includes:View product
Ridewell Height Control Valve - 6320BFAB13
Part #: K861007
$247.00$128.001 reviewRidewell Height Control Valve - 6320BFAB13
Ridewell Height Control Valve - 6320BFAB13
Ridewell P/N 6320BFAB13 Extreme Air Universal Height Control Valve Kit with Zero Pressure (N/C) DumpDayton Air Control Products, LLC
